Model  CSN-L60C Print Printing Method Thermal line printing Printing Speed 120mm/s Resolution 203dpi (High Resolution and High Speed) Character Code page 48 Fonts ASCII：(9*17,9*24，16*18,12*24)  GBK：（24*24） Characters per line Font A（12*24）：32 Font B（9*17）：42GBK：16 Media Max Media Roll OD Thermal Label paper/Wristband paper Min Media Roll ID 25mm Media Paper Type Continuous, gap, fan hold, black mark, Media width Max 58mm , Min: 20mm Media Rolling Up Method Printing side outward Rolling Media Roll Core Size 25mm Media Gap Min.2mm Media Thickness 0.06mm~0.15mm Label Length 20mm~400mm Accessories External Media Holder (Optional) Sensor Paper end Cover open Print head temperature Gap detection Paper position detection Barcode 1D UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 2D QR code/PDF417 Command TSPL,CPCL Software Driver Windows 2000、XP、Vista、Win7、Win8、Windows Server 2003&2008 SDK K-Lalel editor,Android SDK,Windows SDK Andoid SDK Interface USB / Ethernet / BT /WIFI Power 24V,2A Environment Environment Operating:0°C~45°C  Storage:-20°C ~ 60°C Humidity Operating:20%RH~85%RH  Storage:10%~90%RH Dimensions (WxDxH mm) Horizontal 238.7x103.3x137.5mm Weight 1.3kg

Read more less

Model CSN-400 Print Method Thermal line printing Printing Width 108mm(Max) Printer Resolution 203dpi(8dots/mm) Print speed Print speed Paper Loading Structure Spindle Paper Dimensions Paper width:30~110mm Paper thickness:80~180μm Paper roll outer diameter:Max 110mm Paper roll core diameter:25mm Barcode CODE128,EAN128,ITF,CODE39,CODE93,EAN13,EAN13+2,EAN13+5,EAN8,EAN8+2,EAN8+5,CODABAR,POSTNET,UPC-A,UPCA+2,UPCA+5,UPC-3,UPCE+2,UPCE+5,CPOST,MSI,MSIC,PLESSEY,ITF14,EAN14,QR CODE TPH Life/MCBF 100km Characters Set ANK:Font A:12x24dots Font B:9x17dots Jan/traditional form:24x24dots Character Size ASCII:9*17,9*24,16*18,12*24 Character Per Line Font:A(12*24):48 Font B(9*17):64 GBK:24 Auto-cutter tear off or Peel off Interface USB Power supply DC24V/2.0A Printing command Compatible with ESC/POS ,TSPL,CPCL command set Dimension (WxLxH) 180*230*180mm Work environment requirements Temperature 0°C~40°C;Relative humidity:10%~80% Store environmental requirements Temperature-20°C~60°C;Relative humidity:10%~90% Drivers Win2000/WinXP/Windows7/Windows10/Linux

Read more less

Model  KLP-400 Print Printing Method Thermal line printing Printing Speed Max 70mm/s Resolution 203dpi(8dots/mm) Effective printing width 48-104mm Character Character set ASCII，GBK，BIG5 Fonts ASCII：(9*17,9*24，16*18,12*24)  GBK：（24*24） Characters per line Font A（12*24）：32 Font B（9*17）：42GBK：16 Flash 2M byte MCU Flash:128KB SRAM:32KB Paper Spec. Paper Type Thermal Label Paper Width 104mm Paper diameter 50mm(Max) Paper Thickness 0.055-0.15mm Reliability TPH ＞50km(12.5% print ratio) Sensor Paper end, cover open,black mark (optional) Barcode 1D UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 2D QR code Command Compatible with ESC/POS command set Driver/SDK Windows Driver,Linux Driver,OPOS Driver Interface Wire RS232,Type-C USB Wireless Bluetooth V2.0/V4.0 Power 7.4V/2500mAH Recharge adapter DC 12V /1A or 5V/2A USB port charging Environment Environment Operating:0°C~50°C  Storage:-20°C ~ 60°C Charging:5°C~35°C Humidity Operating:10%RH~80%RH  Storage:10%~90%RH Charging:20%~85 Dimensions Weight 530g (Including battery) Dimension(WxLxH) 148*108*55.7mm Color Black  Accessories Standard accessories battery,AC adapter, USB cable,paper roll,user manual Optional accessories Serial cable/CD/Car charger/Protective Case

Read more less

Model  KLP-II Print Printing Method Thermal line printing Printing Speed Max 90mm/s Resolution 203dpi(8dots/mm) Effective printing width 48mm Paper supply method Drop-in easy loading Paper Spec. Paper Type Thermal paper,Label paper Paper Width 25~58mm Paper diameter 40mm(Max.) Paper Thickness Thermal paper roll:0.055-0.1mm;Thermal label roll:0.10-0.12mm Roll core inner diameter 13mm(Min) Reliability TPH 50km(12.5% print ratio) Sensor Cover opened,paper ending,paper gap Barcode 1D EAN13, EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC  2D QR code,PDF417 Text and graphic support Figure,symbol,graph,curve,icon,multi-languages Command ESC/POS,TSPL Driver/SDK Windows Driver,Linux driver,Android SDK Interface Wire Micro USB Wireless Bluetooth2.0 or 4.0 Battery 2000mAh 7.4V rechargeable Lithium battery Recharge adapter 5V,2A (USB charging) Environment Environment Operating:-10°C~50°C  Storage:-20°C ~ 60°C Humidity Operating:10%RH~80%RH  Storage:10%~90%RH Accessories Standard accessories Li-ion battery,AC adapter, USB cable,paper roll,user manual Optional accessories CD/Car charger/Protective Case

Read more less

Model PLP-3 Print Printing Method Thermal line printing Printing Speed Max 90mm/s Resolution 203 dpi(576dots/line) Effective printing width 72mm Character Character set ASCII，GBK，BIG5 Fonts ASCII：(9*17,9*24，16*18,12*24) GBK：（24*24） Characters per line Font A（12*24）：32Font B（9*17）：42GBK：16 Flash 2M byte MCU Flash:256K bytes  2M byte Paper Spec. Paper Type Thermal label Paper Width 25-80mm Paper diameter 40mm(Max) Paper Thickness 55-120μm Reliability TPH 50km(12.5% print ratio) Sensor Paper end, cover open,label gap Barcode 1D UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 2D QR code Command Compatible with ESC/POS,CPCL,TSPL command set Driver/SDK Windows Driver,Linux Driver, Interface Wire RS232+USB Wireless Bluetooth2.0 or 4.0/Wifi Power 2000mAh 7.4V rechargeable Lithium battery Environment Environment Operating:0°C~50°C Storage:-20°C ~ 60°C Humidity Operating:10%RH~80%RH Storage:10%~90%RH Dimensions Weight 360g (Including battery) Dimension(WxLxH) 111x124x48mm Color Black Accessories Standard accessories Li-ion battery,AC adapter, USB cable,paper roll,user manual Optional accessories Serial cable/CD/Car charger/Protective Case

Read more less

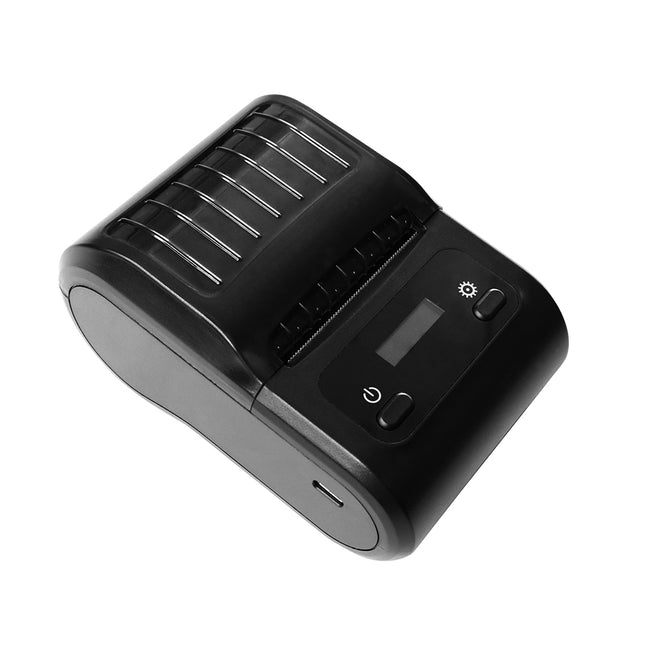

MODEL KLP-200 Print print mode Thermal line printing Printing speed（Max.) 50mm/s Resolution 203dpi(8dots/mm) Effective printing width 48mm Paper spec. Paper Type Thermal label roll Paper Thickness  Label:0.10-0.15mm Paper Width 25-58mm Paper Diameter(O.D) 40mm(Max.) Roll Core Inner Diameter 13mm(min) Paper supply method Drop-in easy loading LED indicator OLED display Reliability TPH 50km(12.5% print ratio) Detection Paper end,Cover opend,paper gap Barcode 1D EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC-E 2D QR CODE,PDF417 Text and graphic support Figure, symbol, graph, curve, icon, multi-languages Command set ESC/POS,TSPL,CPCL Driver/SDK Windows Driver, Linux Driver,Android SDK,Label editor app(Andriod version) Interface Wire Type-C USB Wireless Dual bluetooth Battery 7.4V,1600mAh 3Hrs charging time 72Hrs Stand-by Battery adapter 5V,1A USB Charging Optionals and accessories Li-polymer battery, AC adapter, Type-C USB cable,paper roll, Protective Case,CD, user manual Temperature Operating:0℃~50℃ Storage:-20℃ ~ 60℃ Humidity Operating:10%RH~80%RH Storage:10%~90%RH
