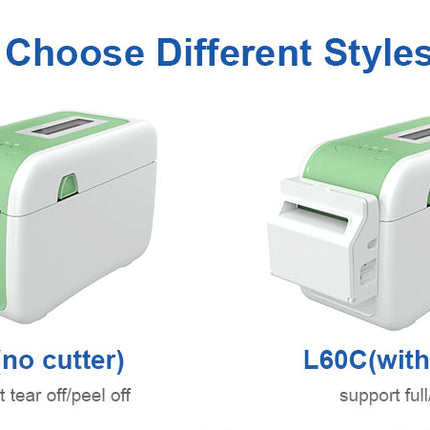

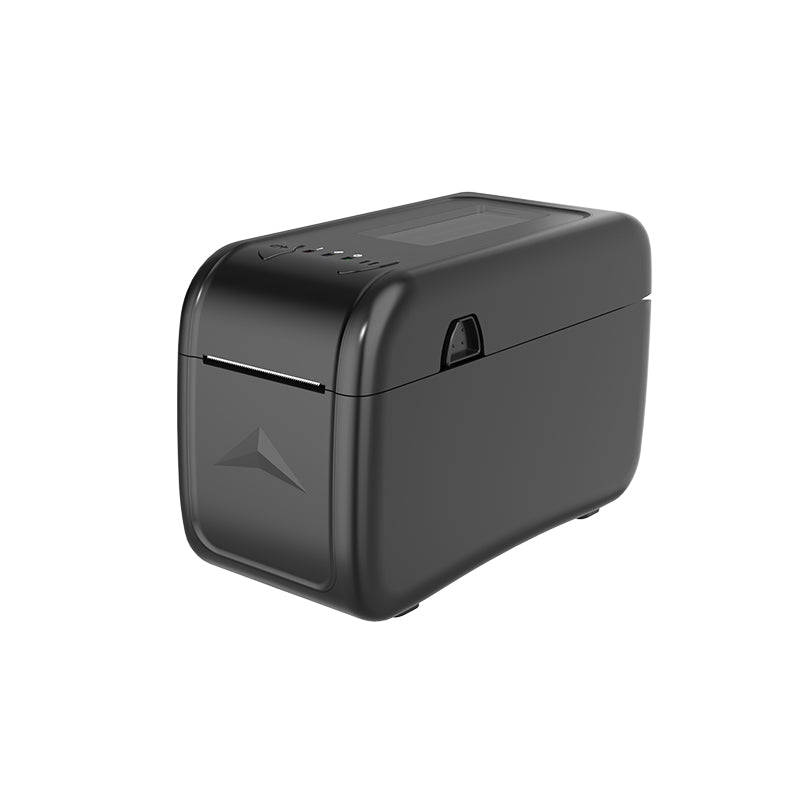

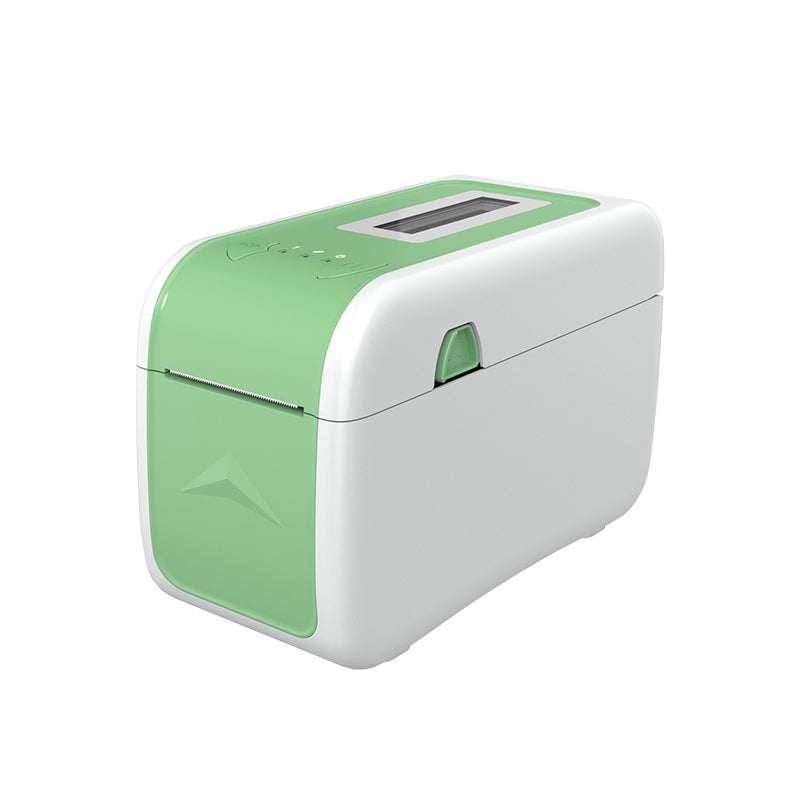

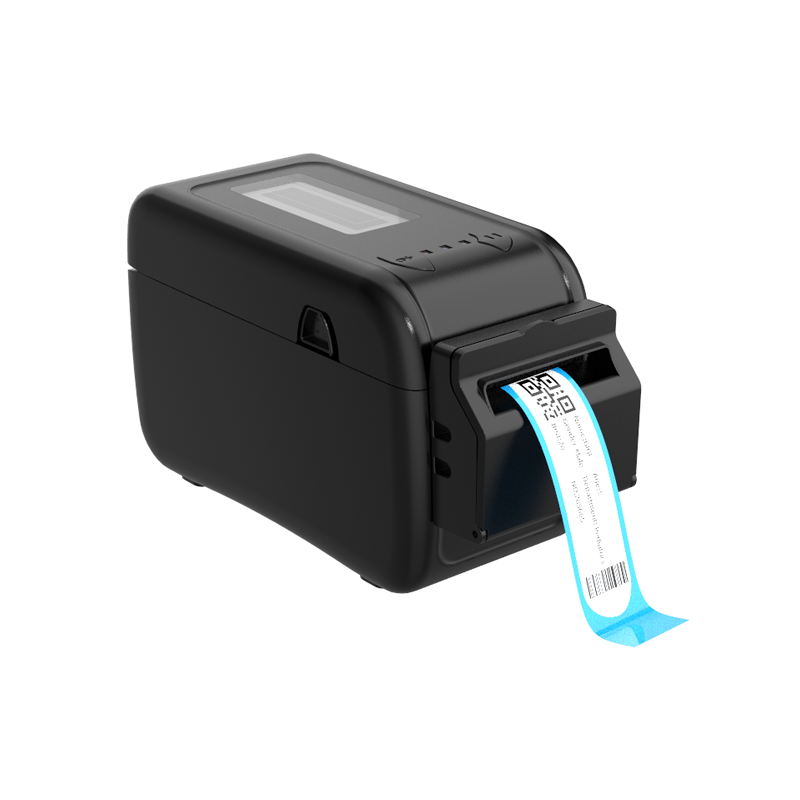

Model
|
|
CSN-L60C
|
|
Print
|
Printing Method
|
Thermal line printing
|
|
Printing Speed
|
120mm/s
|
|
Resolution
|
203dpi (High Resolution and High Speed)
|
|
Character
|
Code page
|
48
|
|
Fonts
|
ASCII：(9*17,9*24，16*18,12*24)
GBK：（24*24）
|
|
Characters per line
|
Font A（12*24）：32
Font B（9*17）：42
GBK：16
|
|
|
Max Media Roll OD
|
Thermal Label paper/Wristband paper
|
|
Min Media Roll ID
|
25mm
|
|

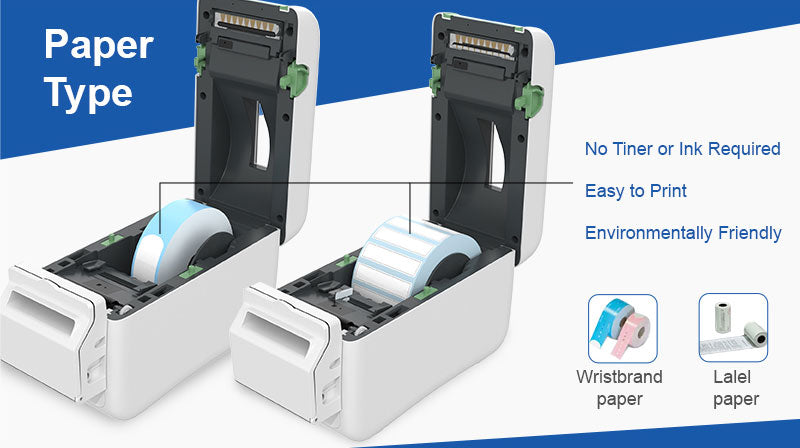

Media Paper Type
|
Continuous, gap, fan hold, black mark,
|
|

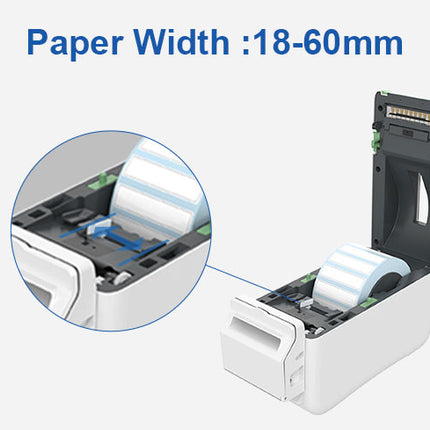

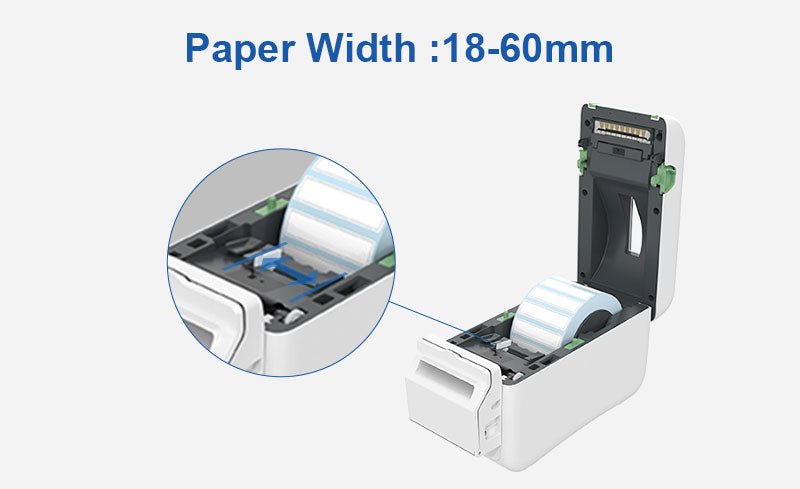

Media width
|
Max 58mm , Min: 20mm
|
|
Media Rolling Up Method
|
Printing side outward Rolling
|
|
Media Roll Core Size
|
25mm
|
|
Media Gap
|
Min.2mm
|
|
Media Thickness
|
0.06mm~0.15mm
|
|
Label Length
|
20mm~400mm
|
|
Accessories
|
External Media Holder (Optional)
|
|
Sensor
|
Paper end Cover open Print head temperature Gap detection Paper position detection
|
|
Barcode
|
1D
|
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
|
|
|
2D
|
QR code/PDF417
|
|
Command
|
TSPL,CPCL
|
|
Software
|
Driver
|
Windows 2000、XP、Vista、Win7、Win8、Windows Server 2003&2008
|
|
SDK
|
K-Lalel editor,Android SDK,Windows SDK Andoid SDK
|
|

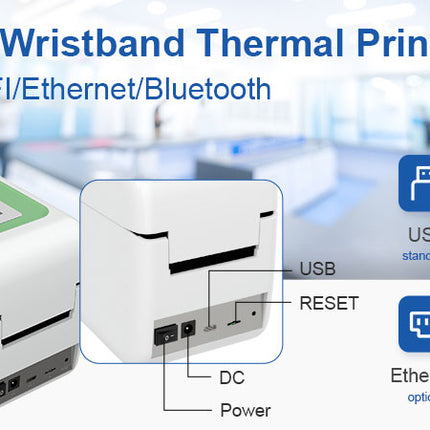

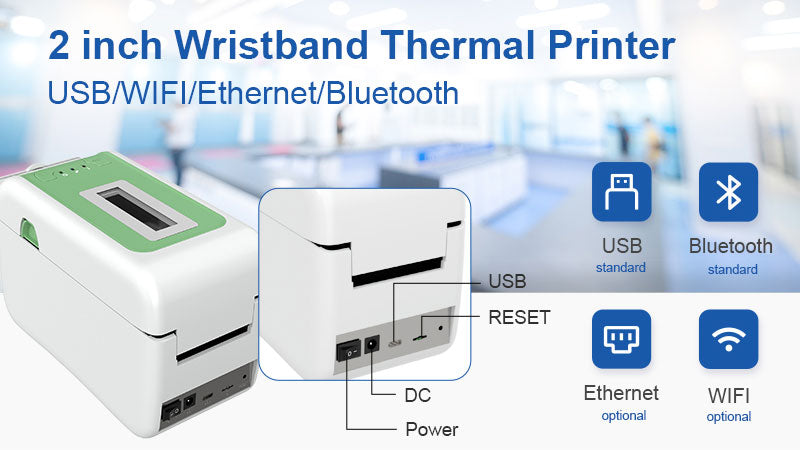

Interface
|
USB / Ethernet / BT /WIFI
|
|
Power
|
24V,2A
|
|
Environment
|
Environment
|
Operating:0°C~45°C
Storage:-20°C ~ 60°C
|
|
Humidity
|
Operating:20%RH~85%RH
Storage:10%~90%RH
|
|

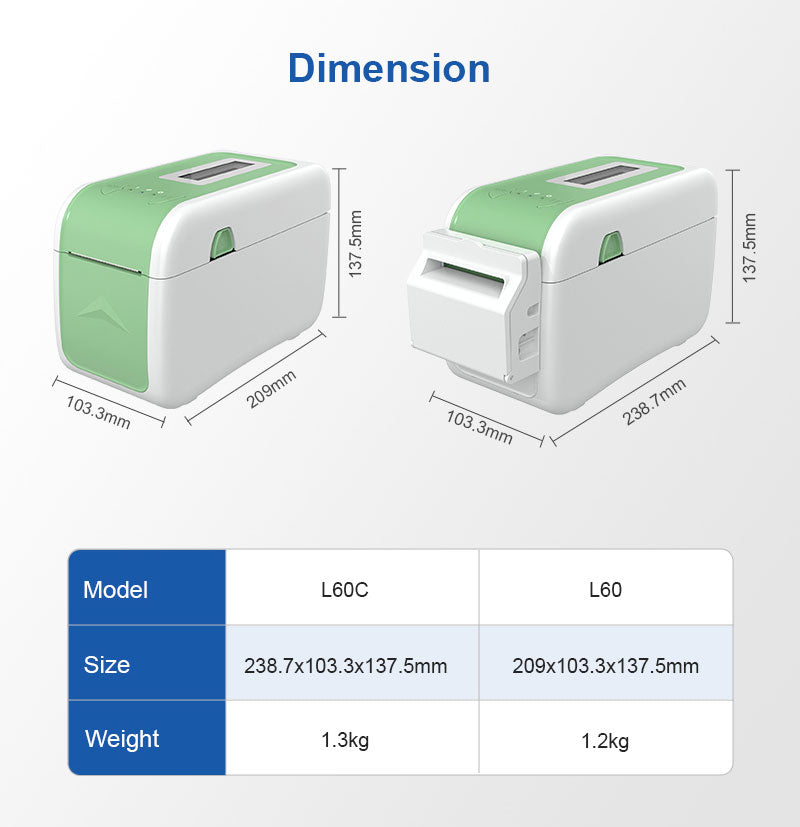

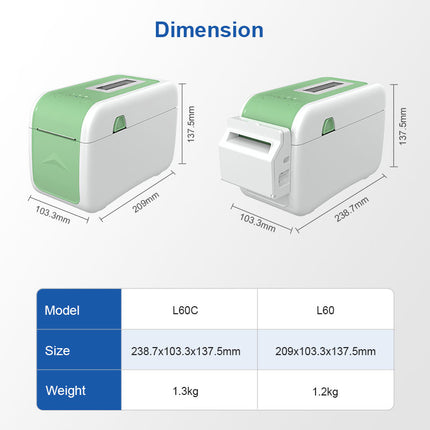

Dimensions (WxDxH mm)
|
Horizontal
|
238.7x103.3x137.5mm
|
|
Weight
|
1.3kg
|
