Model
|
|
PLP-3
|
|
Print
|
Printing Method
|
Thermal line printing
|
|
Printing Speed
|
Max 90mm/s
|
|
Resolution
|
203 dpi(576dots/line)
|
|
Effective printing width
|
72mm
|
|
Character
|
Character set
|
ASCII，GBK，BIG5
|
|
Fonts
|
ASCII：(9*17,9*24，16*18,12*24) GBK：（24*24）
|
|
Characters per line
|
Font A（12*24）：32Font B（9*17）：42
GBK：16
|
|
Flash
|
2M byte
|
|
MCU
|
Flash:256K bytes 2M byte
|
|
Paper Spec.
|
Paper Type
|
Thermal label
|
|
Paper Width
|
25-80mm
|
|
Paper diameter
|
40mm(Max)
|
|
Paper Thickness
|
55-120μm
|
|
Reliability
|
TPH
|
50km(12.5% print ratio)
|
|
Sensor
|
Paper end, cover open,label gap
|
|
Barcode
|
1D
|
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
|
|
|
2D
|
QR code
|
|
Command
|
Compatible with ESC/POS,CPCL,TSPL command set
|
|
Driver/SDK
|
Windows Driver,Linux Driver,
|
|
Interface
|
Wire
|
RS232+USB
|
|
Wireless
|
Bluetooth2.0 or 4.0/Wifi
|
|
Power
|

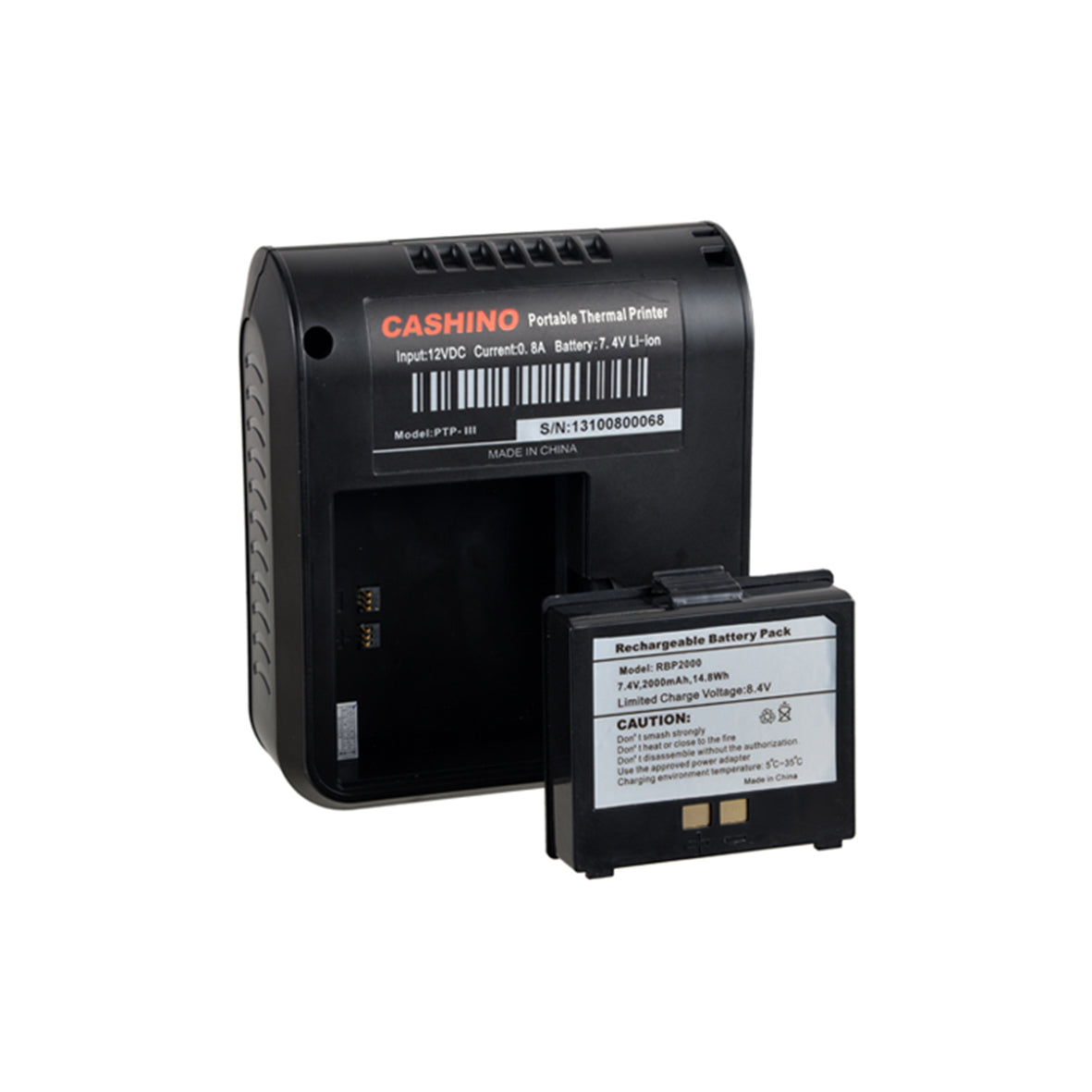

2000mAh 7.4V rechargeable Lithium battery
|
|
Environment
|
Environment
|
Operating:0°C~50°C Storage:-20°C ~ 60°C
|
|
Humidity
|
Operating:10%RH~80%RH Storage:10%~90%RH
|
|
Dimensions
|
Weight
|
360g (Including battery)
|
|
Dimension(WxLxH)
|
111x124x48mm
|
|
Color
|
Black
|
|
Accessories
|
Standard accessories
|
Li-ion battery,AC adapter, USB cable,paper roll,user manual
|
|
Optional accessories
|
Serial cable/CD/Car charger/Protective Case
|
