Model
|
|
KMP-400
|
|
Print
|
Printing Method
|
Thermal line printing
|
|
Printing Speed
|
Max 65mm/s
|
|
Resolution
|
203dpi(8dots/mm)
|
|
Effective printing width
|
48-104mm
|
|
Character
|
Character set
|
ASCII，GBK，BIG5
|
|
Fonts
|
ASCII：(9*17,9*24，16*18,12*24)
GBK：（24*24）
|
|
Characters per line
|
Font A（12*24）：32
Font B（9*17）：42
GBK：16
|
|
Flash
|
2M byte
|
|
MCU
|
Flash:128KB SRAM:32KB
|
|
Paper Spec.
|
Paper Type
|
Thermal paper
|
|
Paper Width
|
58-112±0.5mm
|
|
Paper diameter
|
50mm(Max)
|
|
Paper Thickness
|
0.06-0.09mm
|
|
Reliability
|
TPH
|
＞50km(12.5% print ratio)
|
|
Sensor
|
Paper end, cover open,black mark (optional)
|
|
Barcode
|
1D
|
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
|
|
|
2D
|
QR code
|
|
Command
|
Compatible with ESC/POS command set
|
|
Driver/SDK
|
Windows Driver,Linux Driver,OPOS Driver
|
|
Interface
|
Wire
|
RS232,Type-C USB
|
|
Wireless
|
Bluetooth V2.0/V4.0
|
|
Power
|
7.4V/2500mAH
|
|
Recharge adapter
|
DC 12V /1A or 5V/2A USB port charging
|
|
Environment
|
Environment
|
Operating:0°C~50°C
Storage:-20°C ~ 60°C
Charging:5°C~35°C
|
|
Humidity
|
Operating:10%RH~80%RH
Storage:10%~90%RH
Charging:20%~85
|
|
Dimensions
|
Weight
|
530g (Including battery)
|
|

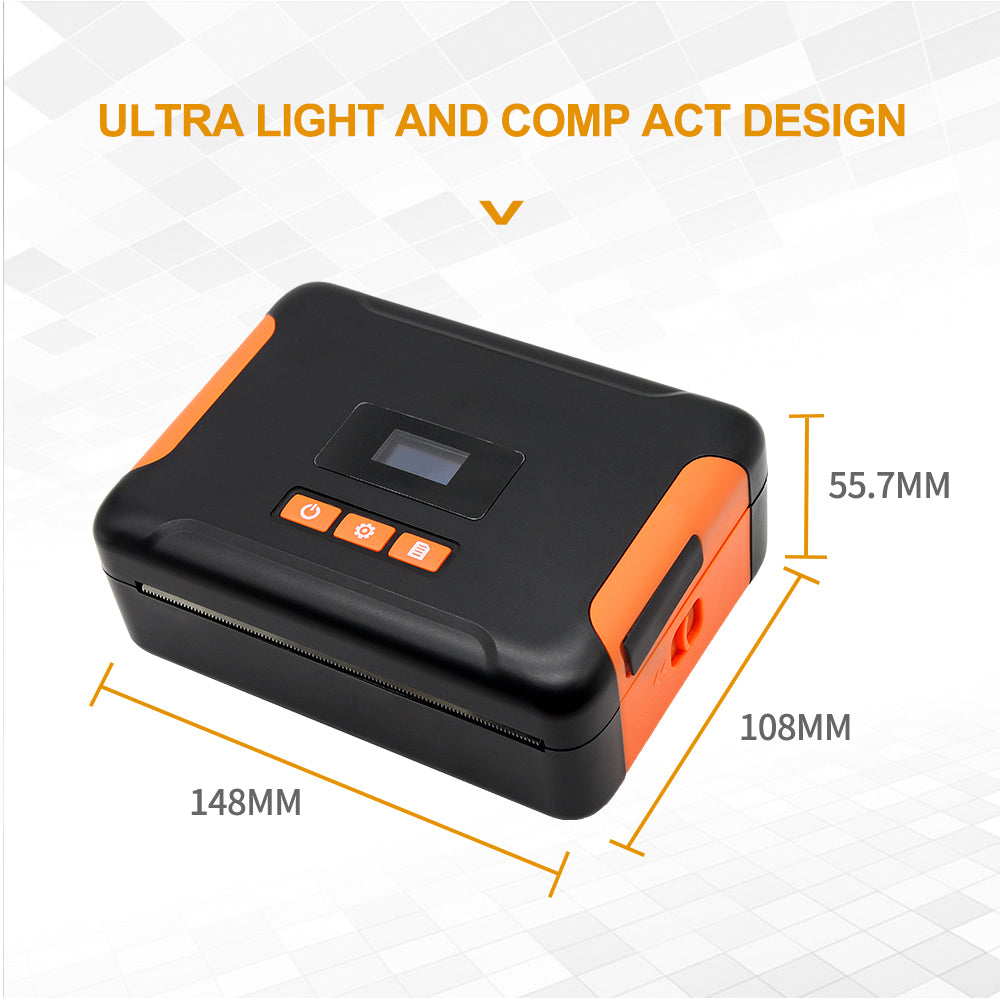

Dimension(WxLxH)
|
148*108*55.7mm
|
|
Color
|
Black or White
|
|

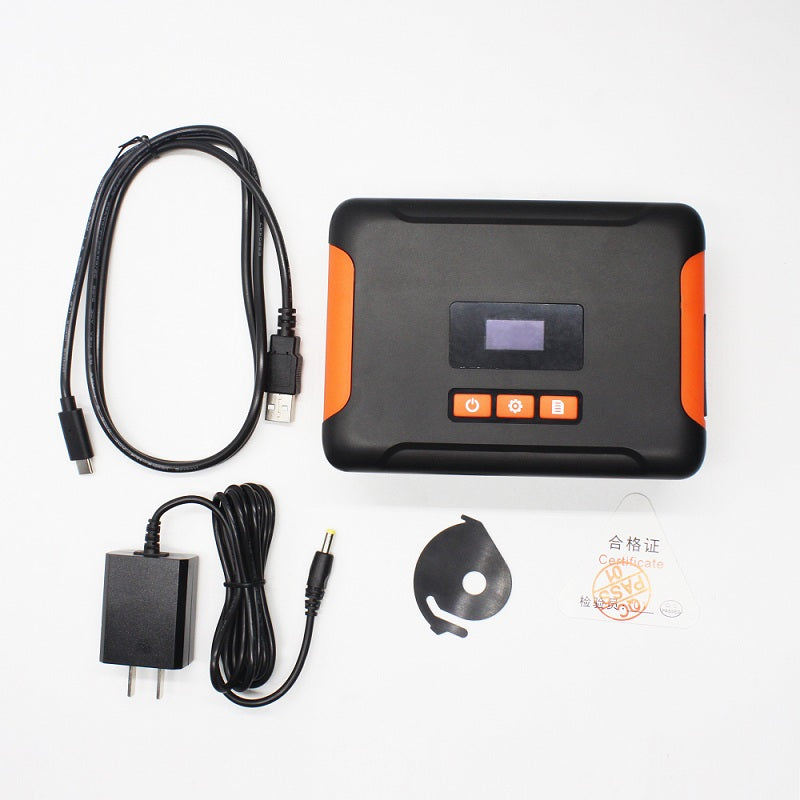

Accessories
|
Standard accessories
|

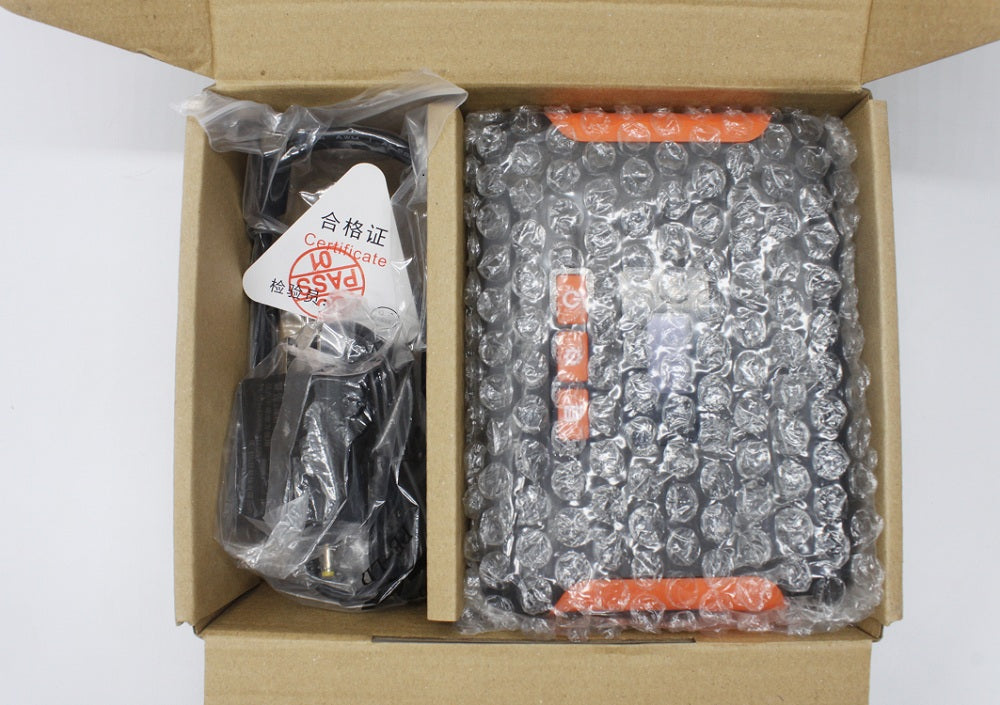

battery,AC adapter, USB cable,paper roll,user manual
|
|
Optional accessories
|

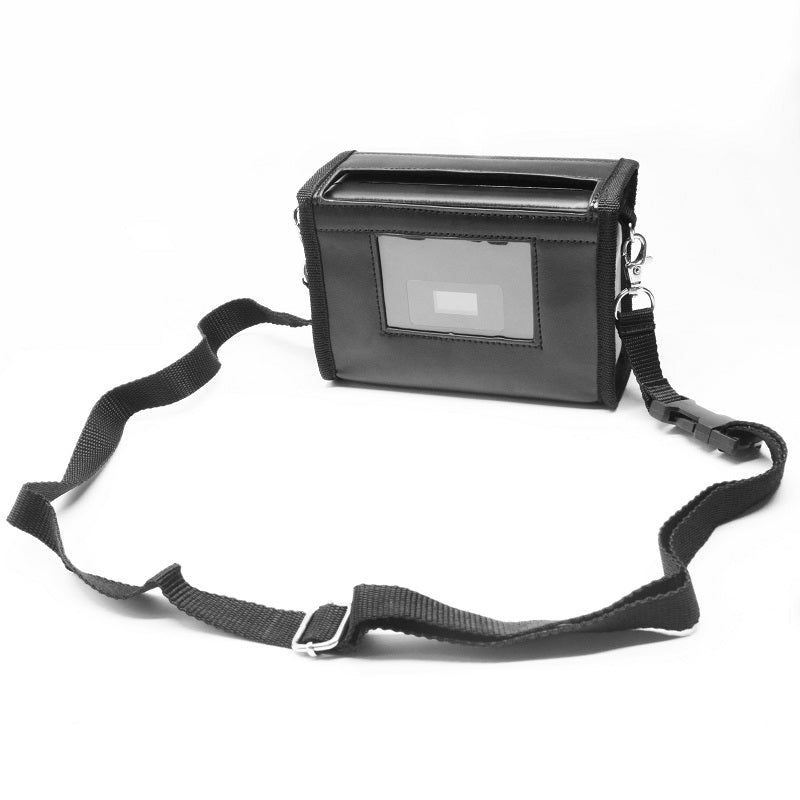

Serial cable/CD/Car charger/Protective Case
|
