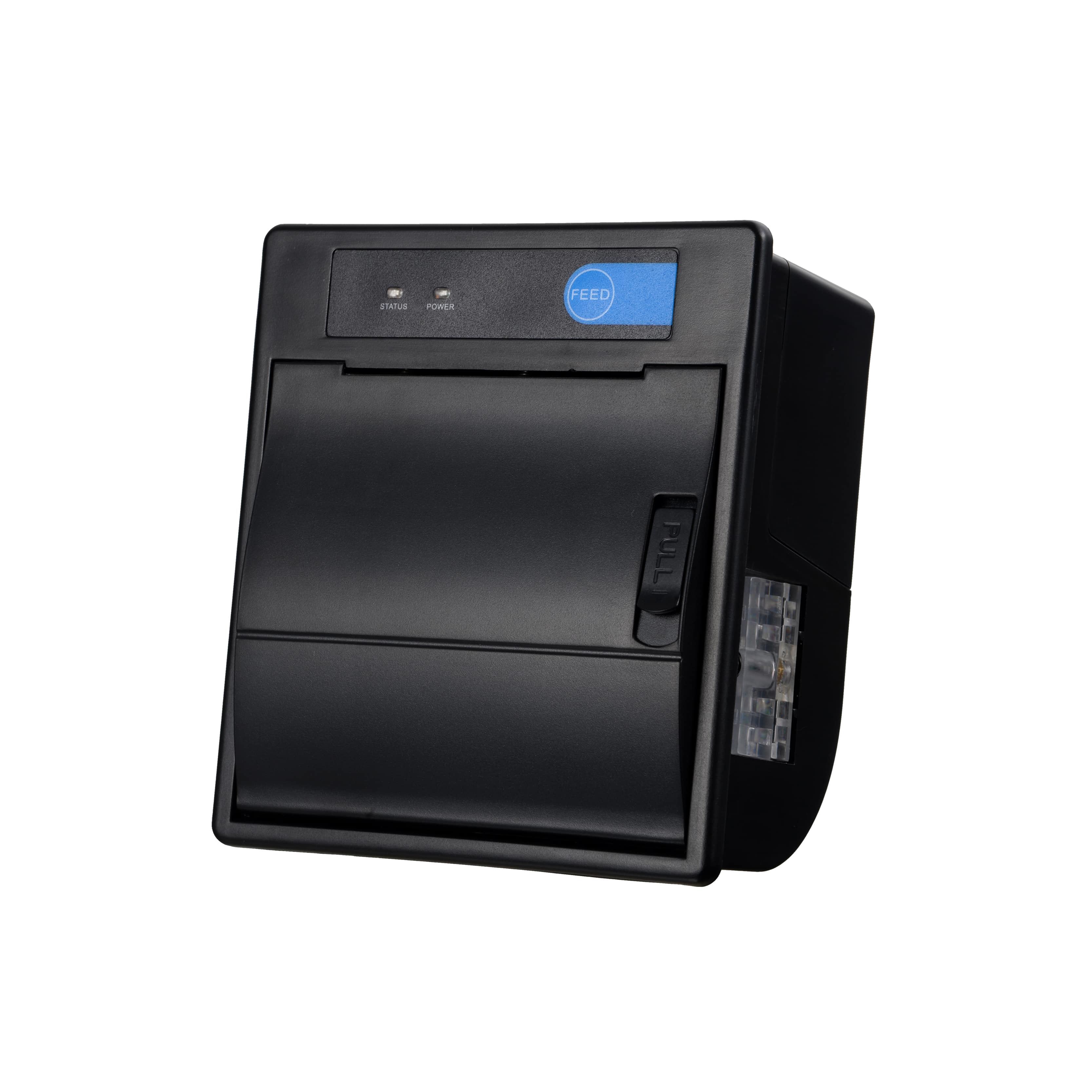

Model
|
|
EP-260CL|EP-260CH
|
|
Print
|
Printing Method
|
Thermal line printing
|
|
Printing Speed
|
Max:200mm/s
|
|
Resolution
|
203dpi(8dots/mm)
|
|
Effective printing width
|
48mm
|
|
Character
|
Character set
|
ASCⅡ,GB2312-80(Chinese)
|
|
Fonts
|
ANK:9*17,12*24,GBK:24*24
|
|
Character Flash
|
4M byte
|
|
MCU
|
Flash:128KB SPAM:20KB
|
|
Paper Spec.
|
Paper Type
|
Thermal paper
|
|
Paper Width
|
58mm
|
|
Paper thickness
|
55-90μm
|
|
Paper diameter
|
80mm(Max)
|
|
Reliability
|
TPH
|
100km
|
|
Cutter
|
1,000,000 cuts or more
|
|
Text and graphic support
|
Figure,sample,graph,curve icon,multi-languages
|
|
Barcode
|
1D
|
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
|
|
|
2D
|
QR code/PDF417
|
|
Command
|
Compatible with ESC/POS command set
|
|
Driver/SDK
|
Windows Driver,Linux Driver,OPOS Driver
|
|
Detectors
|
paper end,paper near end,paper out,paper taken out,cover open
|
|
Cutting Method
|
Full/Partial cut
|
|

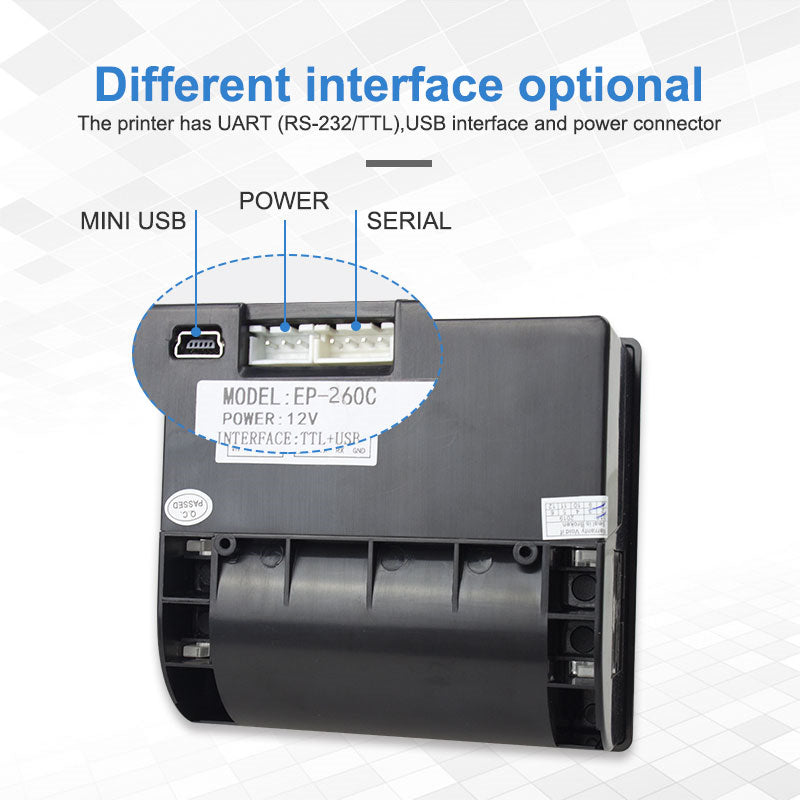

Interface
|
Serial(RS232/TTL)+USB
|
|
Power
|
DC24V±10%,2A
|
|
Environment
|
Environment
|
Operating:0°C~50°C
Storage:-20°C ~ 60°C
|
|
Humidity
|
Operating:10%RH~80%RH
Storage:10%~90%RH
|
|
Dimensions
|
Outline Dimension(W*L*H)
|
102×115.5×66mm
|
|
Installation Port Size
|
96.3×110mm
|
|
Insert Depth
|
56mm
|
|
Color
|
Black/White
|
